Design Optimization for Enhanced Patient Comfort in Pelvic Health Treatment

About Client

A leading medical device manufacturer in Netherlands, specialised in pelvic health, engaged iOrbit to develop a consumer home-use variant of the existing clinical version of their pelvic health device.

The device helps in targeted and effective treatment of pelvic floor dysfunction in females with an accurate diagnosis. The unique design of the probe makes it suitable for both rectal and vaginal use.

Client’s Challenge

The challenges with existing system are

The professional system is complex and costly

The system is limited to specialised clinicians in clinical environment

Inability to continuously monitor the progress

Requires patients to make frequent visits to the clinic

This calls for a new variant which the users can use themselves at home. The home-use variant should be more user-friendly without compromising on the features. It should also support existing probe design as the probe is expected to be the same and not expected to be redesigned.

Design Focus

Industrial Design
Mechanical Design
Prototyping

iOrbit Solution

User Pain Points

Social stigma, misconceptions causing delayed diagnosis

Limited access to care, Geographical & financial barriers

Diagnosis challenges with overlapping symptoms

Usability issues, discomfort leading to poor adherence

The Solution

Device shall have a wearable design with smaller form factor

Fully concealed wearable design for a sense of privacy

The device shall be placed at the pelvic floor area and shall have unobtrusive operation

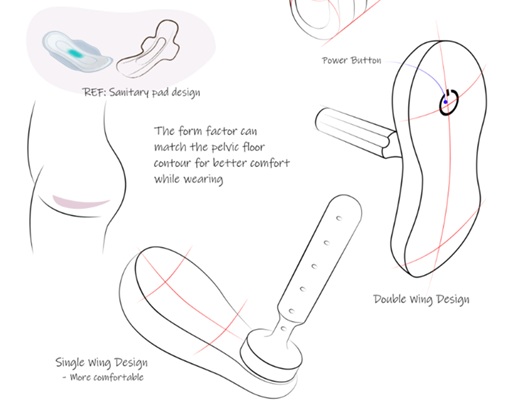

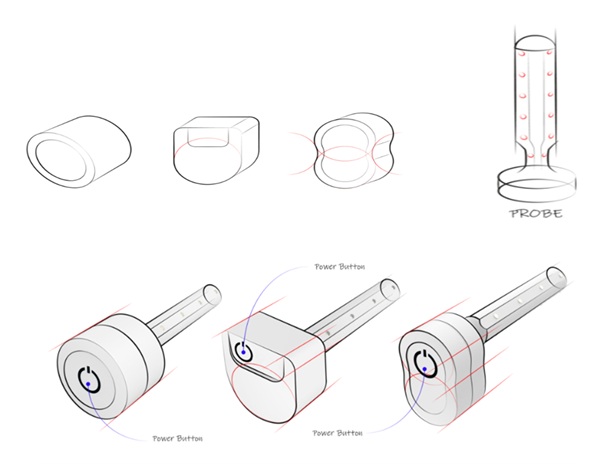

Form Exploration & Conceptualisation

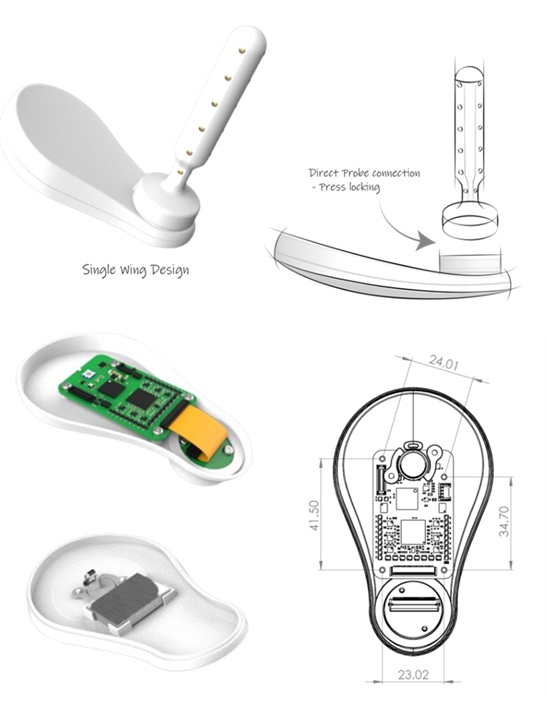

Final Design

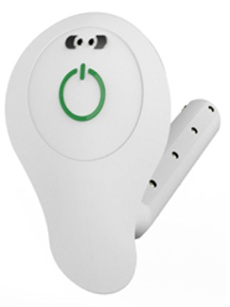

The Outcome

Treatment at the privacy of home can lead to more acceptance and early treatment

Increased access with more affordable variant

Personalised and precise treatment improves the clinical outcome

Optimised design for maximum user comfort
